    Dust Extraction & Filtration supplier and manufacturer

    DUST CONTROL

    ZONE

    Full Technical Specifications

    Main Features:



    • Filter areas from 5m  to 40m

    • Front access for Ease of maintenance

    • Quick release facility for dust bin

    • Filtration efficiencies up to 99% on 0.3 micron dusts

    • ATEX Certification where applicable

    2

    Click Here to Enter the Heat and Energy Recovery Zone
    Click Here to Enter the Heat and Energy Recovery Zone
    Click Here to Enter the Heat and Energy Recovery Zone
    ENERGY
    RECOVERY
    Click Here to Enter the Hign Vacuum and Centralised Vacuum Systems Zone
    Click Here to Enter the Hign Vacuum and Centralised Vacuum Systems Zone
    Click Here to Enter the Hign Vacuum and Centralised Vacuum Systems Zone
    INDUSTRIAL
    VACUUM
    Click Here to Enter the Ventilation and Air Conditioning Zone
    Click Here to Enter the Ventilation and Air Conditioning Zone
    Click Here to Enter the Ventilation and Air Conditioning Zone
    VENTILATION
    COOLING
    Click Here to Enter the Fume Extraction and Vapour Control Zone
    Click Here to Enter the Fume Extraction and Vapour Control Zone
    Click Here to Enter the Fume Extraction and Vapour Control Zone
    FUME
    VAPOUR
    Click Here to Enter the Dust Extraction and Filtration Zone
    Click Here to Enter the Dust Extraction and Filtration Zone
    Click Here to Enter the Dust Extraction and Filtration Zone
    DUST
    CONTROL

    Venting Filters

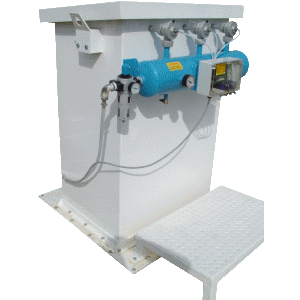

    The ZONED FC range of cartridge filters are part of a long established range of automatic cleaning filters, designed for continuous operation in manufacturing proccess that require a high level of filtration efficiency.



    Our recently updated models provide generously sized pre-separation chambers to increase dust handling capacity whilst reducing the load on the filter elements.



    A range of space saving integral fans are available with optional outlet silencers. Larger units may be served by floor mounted fans for increased efficiency.



    The FC range of filters are an effective and efficient way to reduce airborne dusts from your facility, providing an improved workplace for your employees and ensuring optimum product quality.

    Technical Specifications

    Fans



    • 0.75kW to 7.5kW fan models available

    • Super-efficient motors with both single phase (220-240V) or three phase (400-440V) supply options available

    • ATEX version fans and motors available

    Casings



    • Fully welded mild steel enclosures with epoxy coated finish as standard

    • Powder coated finish as option

    Filter Elements



    • Light-weight spun-bond polyester media, pleated to maximise the filtration surface

    • Filter elements supported on a quick removal plate for ease of maintenance and reduced shut-down times

    Cleaning System



    • Automated reverse jet (pulse jet) cleaning system for 24/7 operation

    • Filter sequencing control panel supplied as standard to automate pulse cleaning through timed delays or only when elements are dirty (to save on compressed air consumption).

    Ancillaries



    • Explosion relief panels fitted for combustible dusts

    • Variety of filter media options available to suit your application including anti-static (epitropic) for ATEX applications

    • Colours to suit your environment

    • Differential pressure gauges available for filter monitoring
